51108 Self Aligning Axial Ball Thrust Bearing For Machine 51100 Bearing Steel

Product Categories
DWR Bearing Co., Ltd
Contact Now

51108 Self Aligning Axial Ball Thrust Bearing For Machine 51100 Bearing Steel

Brand Name : DWR

Model Number : 51108

Certification : ISO9001:2008

Place of Origin : China

MOQ : 1pc

Price : USD 0.1/pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000pcs per month

Delivery Time : 10 working days

Packaging Details : Normal package

Type : Thrust ball bearing

Precision Rating : ABEC-1,ABEC-3,ABERC-5

Material : Chrome Steel/GCr15/5210

Cage : Steel Cage.Brass Cage

Contact Now

51108 Self Aligning Axial Ball Thrust Bearing For Machine 51100 Bearing Steel

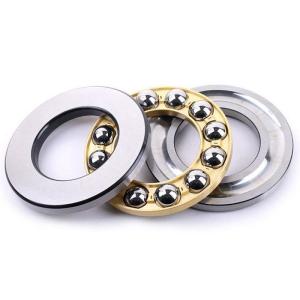

Thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load. thrust ball bearings are separable, ie the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately

Features of Thrust Ball Bearing

1. Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
2. Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.

51108 Self Aligning Axial Ball Thrust Bearing For Machine 51100 Bearing Steel

Bearing No. Boundry Dimension (mm) Mass
d D T kg
51100 10 24 9 0.020
51101 12 26 9 0.022
51102 15 28 9 0.024
51103 17 30 9 0.028
51104 20 35 10 0.040
51105 25 42 11 0.059
51106 30 47 11 0.068
51107 35 52 12 0.090
51108 40 60 13 0.120
51109 45 65 14 0.150
51110 50 70 14 0.160
51111 55 78 16 0.240
51112 60 85 17 0.290
51113 65 90 18 0.340
51114 70 95 18 0.360
51115 75 100 19 0.420
51116 80 105 19 0.430
51117 85 110 19 0.460
51118 90 120 22 0.680
51120 100 135 25 0.990
51122 110 145 25 1.080
51200 10 26 11 0.030
51201 12 28 11 0.034
51202 15 32 12 0.046
51203 17 35 12 0.053
51204 20 40 14 0.082
51205 25 47 15 0.120
51206 30 52 16 0.150
51207 35 62 18 0.220
51208 40 68 19 0.270
51209 45 73 20 0.320
51210 50 78 22 0.390
51211 55 90 25 0.610
51212 60 95 26 0.690
51213 65 100 27 0.770
51214 70 105 27 0.810
51215 75 110 27 0.860
51216 80 115 28 0.950
51217 85 125 31 1.290
51218 90 135 35 1.770
51220 100 150 38 2.360
51222 110 160 38 2.570
51224 120 170 39 2.860
51226 130 190 45 4.090
51228 140 200 46 4.460
51305 25 52 18 0.180
51306 30 60 21 0.270
51307 35 68 24 0.390
51308 40 78 26 0.550
51309 45 85 28 0.690
51310 50 95 31 1.000
51311 55 105 35 1.340
51312 60 110 35 1.430
51313 65 115 36 1.570
51314 70 125 40 2.060
51315 75 135 44 2.680
51316 80 140 44 2.820
51317 85 150 49 3.660
51318 90 155 50 3.880
51320 100 170 55 5.110
51406 30 70 28 0.530
51407 35 80 32 0.790
51408 40 90 36 1.140
51409 45 100 39 1.470
51410 50 110 43 1.990
